Automatic Brick Machine
QT6-15B fully automatic brick machine
Details
Features

1)Full automatic block paver brick block making machine can produce various solid blocks , hollow blocks, pavers and curbstones bychanging moulds.

2) Adopt Japan Omron and France Schneider brand switchesSiemens and ABB brand motors to make high quality machinery.

3) Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.

4) Reasonable raw material ratio can produce high strength standard brick, after forming, can stack immediately.

5)The PLC control system made by Japan  Mitsubishi brand,assure stable and high efficiency working status.

Main Technical Parameter
Dimension of host machine
3200*2300*2750
Host machine power
45kw
Weight of host machine
8.5T
Vibration force
60-80KN
Moulding cycle
15-20s
Mixer model
JS500
Water consumption
5-8Ton/day
Pallet size
1150*720*25mm
workshop area
250-300㎡
Voltage
380/415/440V
Theoretical production capacity
Specification
Pcs/Mould
Pcs/hour
Hollow block        400x200x200 (mm)
6
1080-1440
Multi hole brick    240x115x90 (mm)
18
3240-4320
Solid brick             240*115*53 (mm)
40
8470-12000
Paver                      200x100x60 (mm)
27
4860
Shape paver          200*163*60 (mm)
18
3240

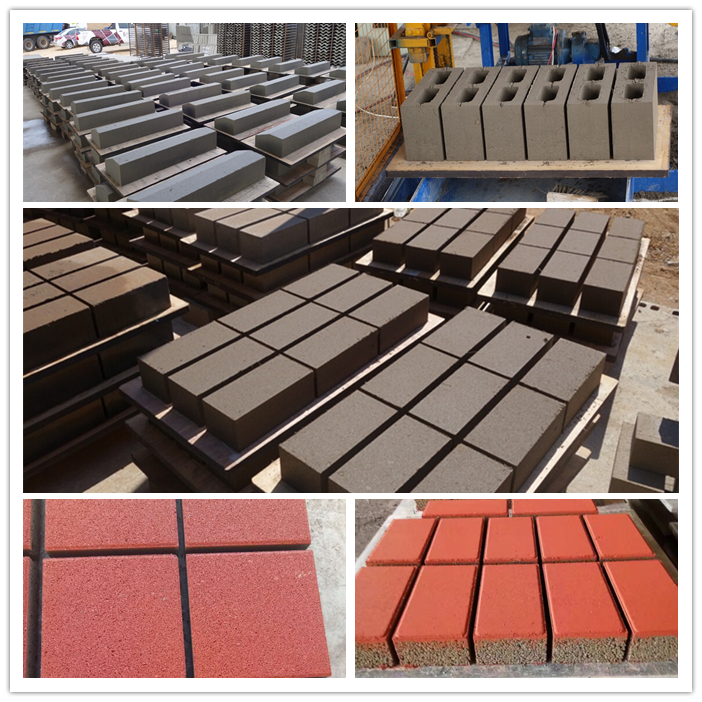

Finished blocks
