Automatic Brick Machine
QT15-15 fully automatic brick machine
Details
Main feature QTF15-15 automatic concrete cement block making machine
1. Advanced drive by wire technology and hydraulic conveyance system can assure you an easy operation and well performance.
2. It will make more blocks than others you may get from other sources, which suit to you who need more solid blocks.
3. The speed of making blocks will be more higher. It has an easy operation with little error.
4. High-intensity can make blocks stacked in a short time.
5. As for the quality of it , I must say that we use the steels of high quality, which was produced by JI steel making company known to all throughout China. The quality of our machine is guaranteed.
6. The mold use the technology of carburization heat treatment , which can give you a guarantee that there will no transformation with 4 million blocks about 6-8 months.

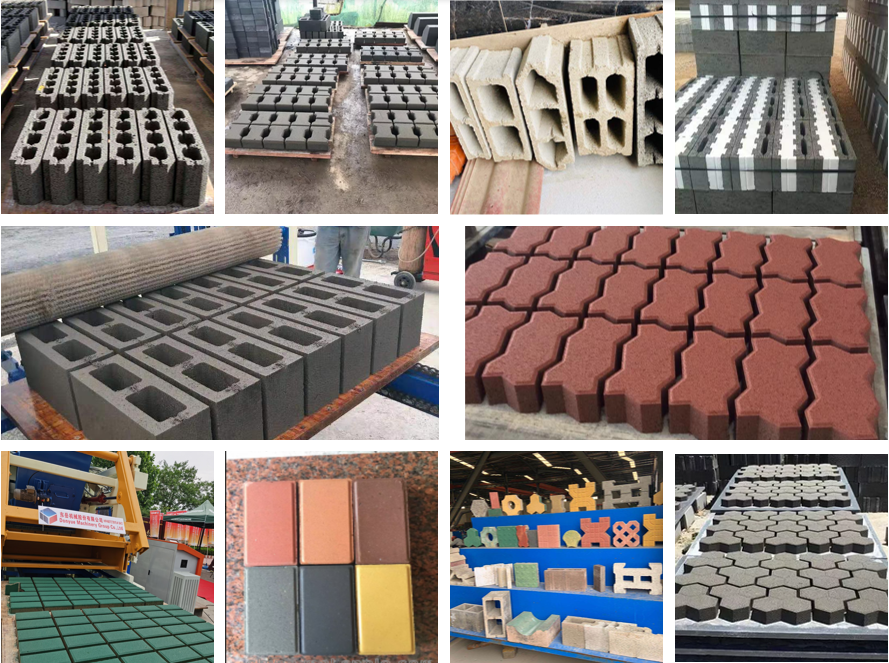

7. Hydraulic brick making machine line can produce all size of hollow blocks,solid bricks interlocking blocks and paver, just change the relevant moulds.
8. The materials can easily get and the source of material are widely enough to get.
9. Our product is of excellent quality and reasonable price. The high technology, high quality, high efficiency will lead to a high return rate, so this kind of machine will be your best choice.

Main technical parameter
Dimension of host machine
12500*2500*3800mm
Host machine power
75KW
Weight of host machine
19000kg
VIbratioon force
180KN
Moulding area
1340*1040mm
Models of mixer
JS1500/CMP1500
Pallet size
1400*1100mm
Froming cycle
15-20 seconds
Theoretical production capacity
Size(L*W*H), mm
pcs/mould
pcs/hour
pcs/ 8 hours
400*200*200mm
15
3600
28800
240*115*53mm solid block
84
20160
161280
Paver:200*100*60mm
42
7560
60840
Paver:200*163*60mm
40
76800
76800
S paver 245*122.5*60mm
40
9600
76800
1000*80*200mm curbstone
12
2160
17280
1000*200*300mm curbstone
1000*180*300mm curbstone
1000*150*300mm curbstone
3
540
4320

The block mold is customizable and replaceable to produce different kinds of blocks according to your requirement.
