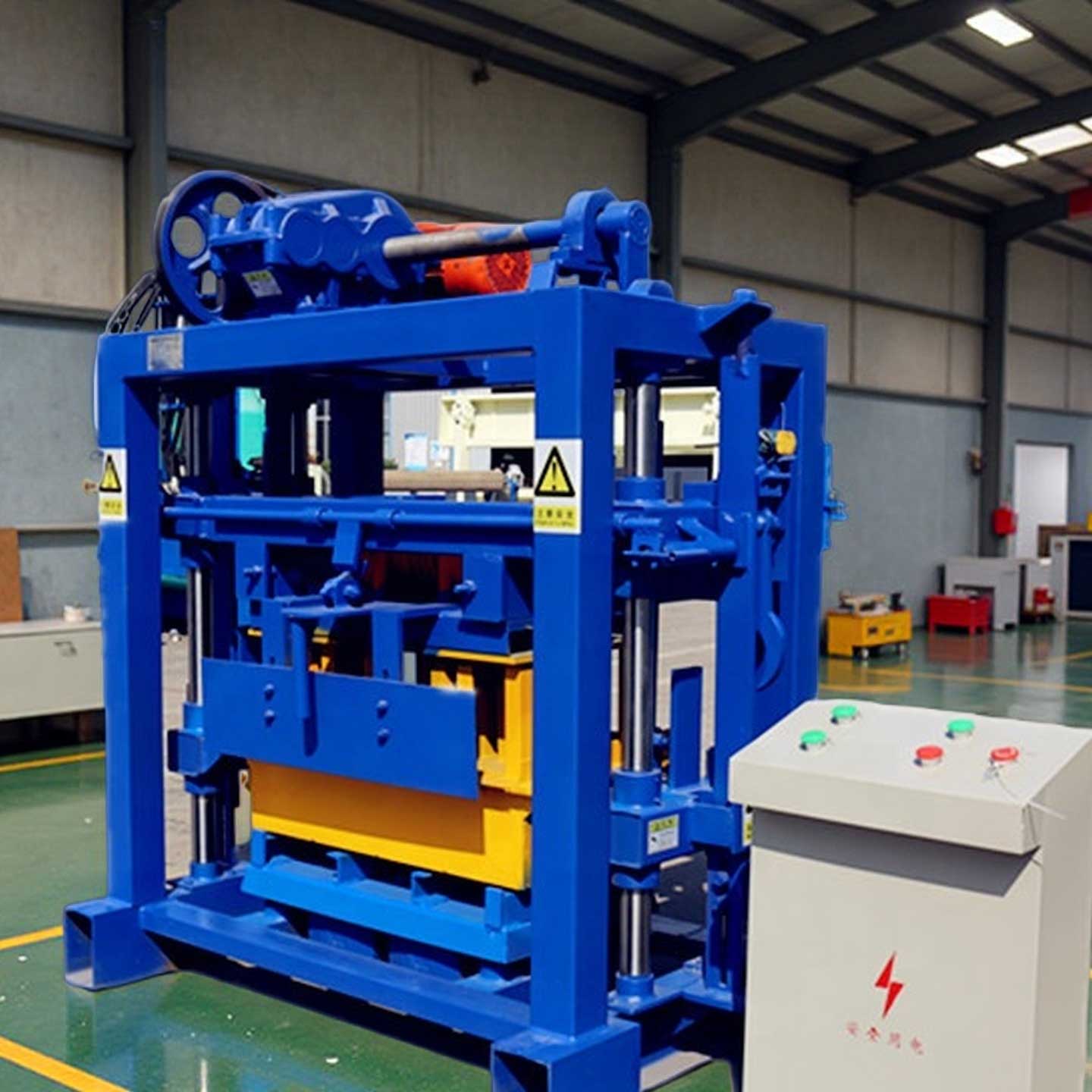

Manual Brick Machine
Details
1.QT40-2 cement block making machine Production capacity
Size(LxWxH) | Pcs/Mould | Pcs/hour | Pcs/ 8 Hr |
400X150X200 | 5 | 360 | 2880 |
400X200X200 | 4 | 288 | 2304 |
400X100X200 | 7 | 504 | 4032 |
400X250X200 | 3 | 216 | 1728 |
240X115X52 | 18 | 1296 | 10368 |
Can make all kind of hollow and solid blocks |
2.QT40-2 cement block making machine main technical parameters
Dimension | 1350×1460×1800mm | Host machine power | 8.8KW |
Voltage | 380V | Vibration force | 30KN |
Mould period | 50S | Capacity | 16.3KW |
The size of the pallet | 850×450×30mm | Mixer model | JD350 |
Weight of the machine | About 1.8T | ||
1.Theoretical workshop area : 50m2 , need about 2-3 workers . 2.the office , curing area and stacking area to arrange according your fact status.. |
